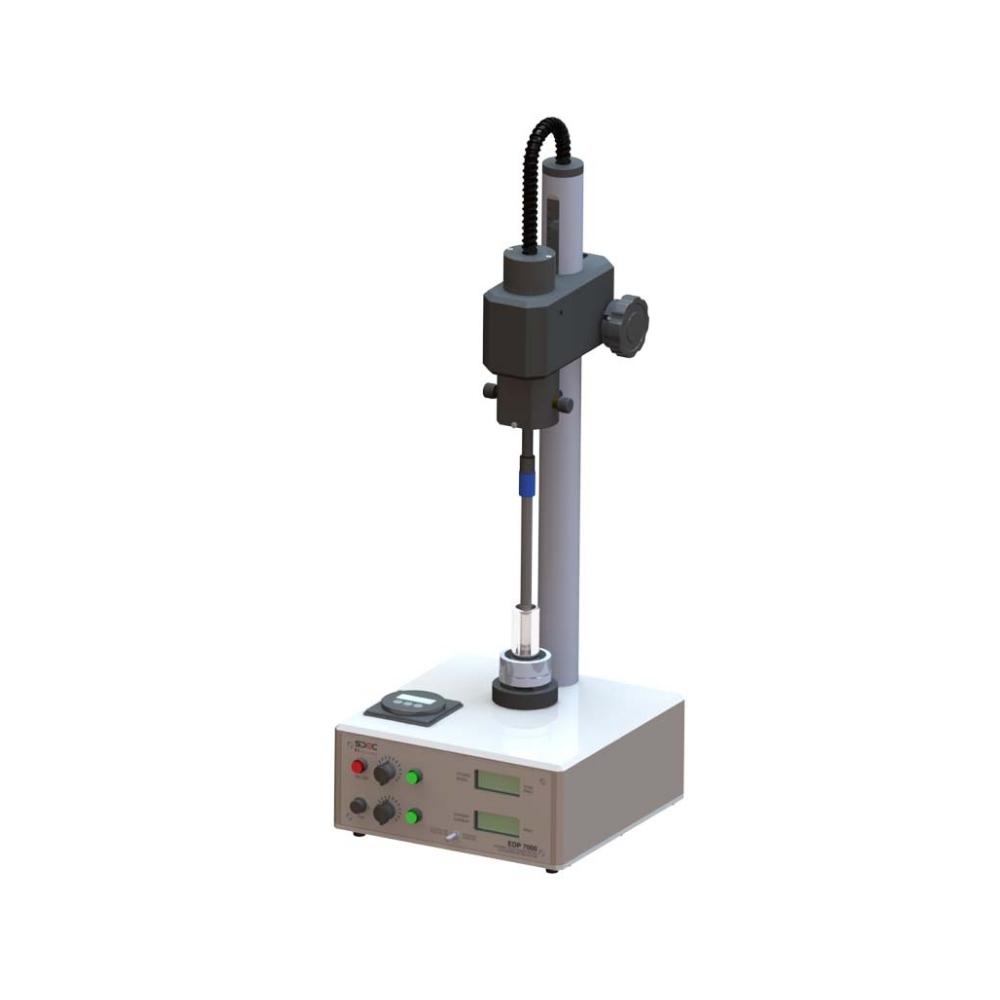

EDP 7000 – Electrodeposition Equipment – Monostation
7791,00 €
- SYNTHETIC MATERIALS: Made from synthetic materials resistant to the corrosive environments of laboratories, ensuring longevity of the EDP.
- HIGH PRECISION: Ensures optimal trapping efficiency with a regulated and constant direct current. The EDP is equipped with a polarity reverser for electrochemical stripping of the stainless steel pellet intended to receive the deposit, thereby ensuring perfect purity of the support.
- COOLING SYSTEM: High-flow air convection to prevent solution evaporation, thanks to a cooling ventilation system.
- VERSATILE SETTINGS: Precise settings for current intensity up to 5 Amperes and electrode rotation speed.

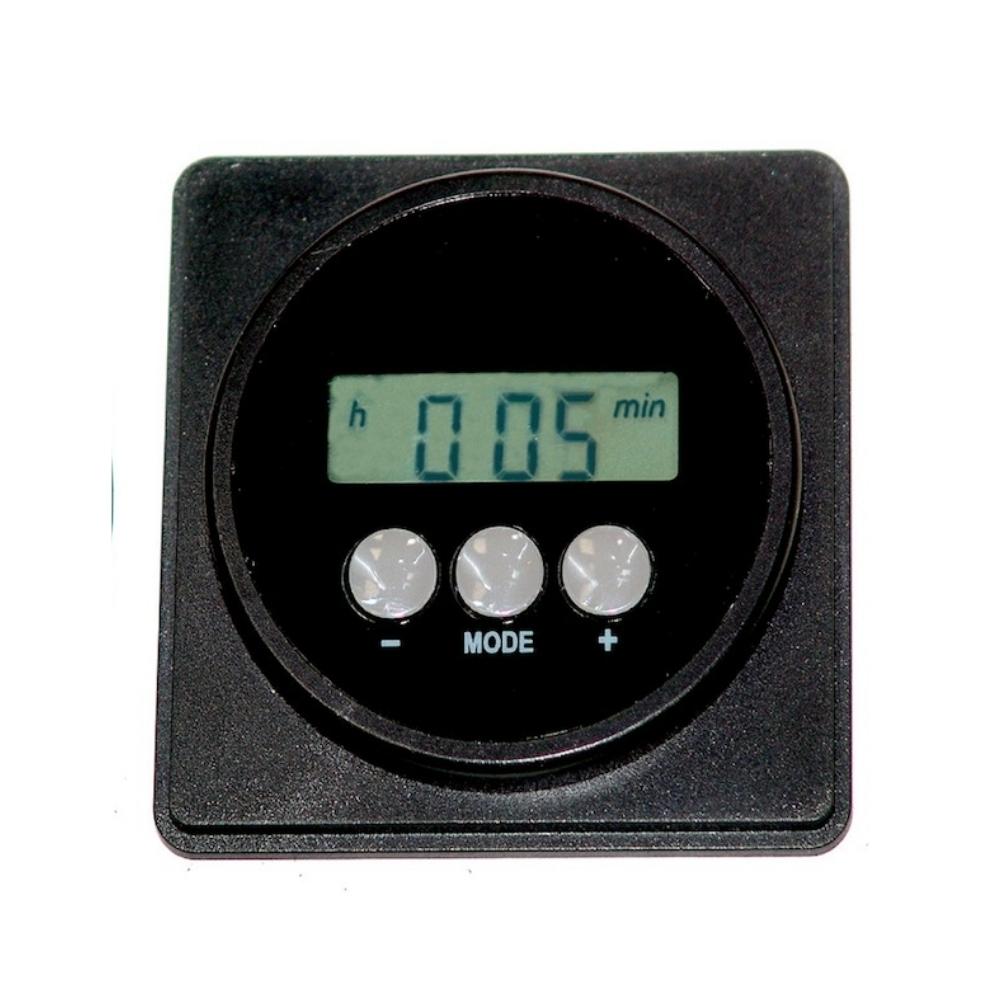

- DIGITAL TIMER: Timer with digital display and audible alarm for exact duration of electrodeposition.
- INTUITIVE USE: Quick installation of bottles, internal container for spills, easy maintenance.
- COLLABORATION WITH COGEMA: Designed in partnership with COGEMA, a leading French nuclear institute.
– Standard Model –
The basic EDP 7000 comes with a Radiometer Analytical platinum PT XM 150 electrode and a bottle holder (specify the desired bottle size at the time of order).

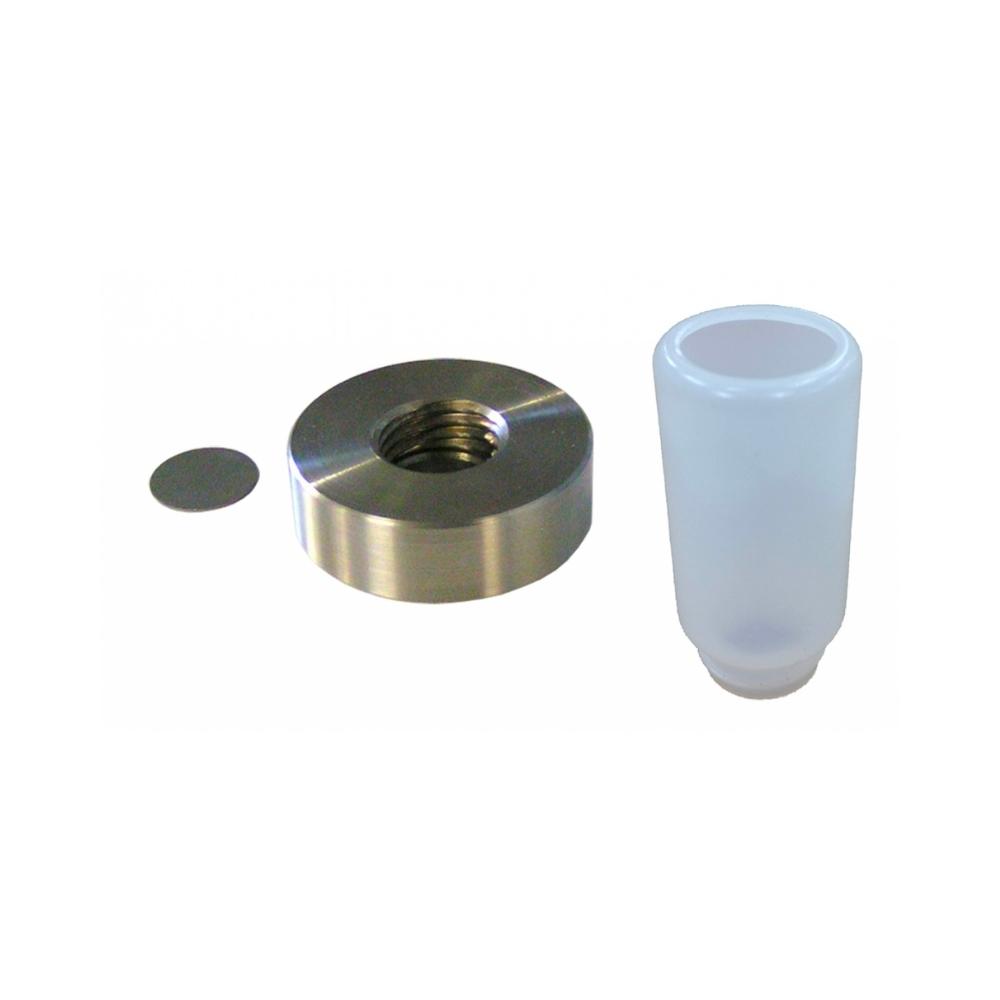

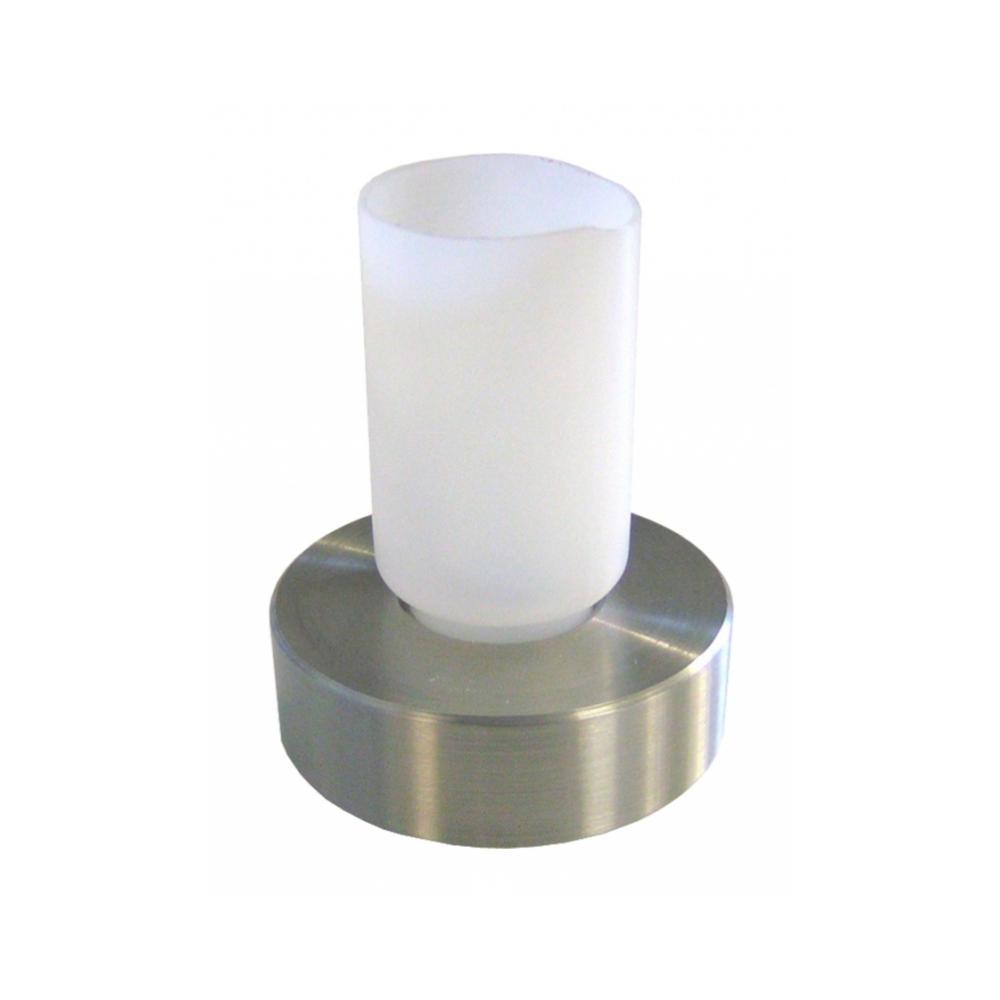

Note that consumables are not included in the basic model: sampling bottles, and stainless steel discs for electrodeposition.
– Operating Principle –
A platinum electrode is immersed in the solution from which radioisotopes are to be isolated.
This rotating electrode acts as the anode in a setup where the cathode is the stainless steel pellet at the bottom of the electrolysis bottle.
A regulated and constant direct current will be applied to this solution, causing, through electrolysis (chemical decomposition of elements in the solution), the galvanic deposition of the present radioisotope(s).
– About SDEC –
SDEC is your global partner for SDEC solutions in radioprotection. Welcome to the world of SDEC France, a leader in environmental and scientific solutions for radioprotection in over 21 countries. Since 1991, SDEC France has been designing, manufacturing, and marketing a wide range of equipment for environmental study and monitoring.
– FAQ –
Additional information
| Station | |
|---|---|
| Front Panel | Scratch-resistant LEXAN type front panel |
| Electrolysis Electrode | Flat platinum disc with screwable head |
| Electrolysis Current | Regulated and adjustable direct current from 0.1 A to 5 A |
| Current Regulation for Electrolysis | The intensity setting is continuous (resolution 0.02 A). In the "off" position or in the event of a power failure, the charging circuit is not traversed by any direct or reverse current |
| Electrode Rotation Speed | Continuously adjustable, from 10 to 600 revolutions per minute |
| Speed Regulation | Speed stability according to torque at ± 5% (time drift < 1 rpm) |
| Display in Revolutions per Minute | Stability: 1 revolution per minute |
| Display | Display of intensity and electrode rotation on an L.C.D screen |
| Timer | Passive timer from 1 minute to 9 hours with digital display and alarm buzzer |
| Cooling | High-flow ventilation, 1000 litres/min |
| Case | Case made of machined ARNITE |
| Mains Power Supply | 230 Volts 50 Hz, IEC type power cord |
| Maximum Power | 100 Watts |
| Weight | 10 kg |
| Footprint | L x H x P = 245 x 650 x 255 mm |
| Operating Tº | 0°C à + 45°C |
| Storage Tº | -25°C à + 70°C |
| Ruler | Adjustment of the electrode height on a graduated ruler |
